[FPGA] IP Package 하기
썽우디
2021. 11. 9. 17:14
FPGA IP Package 하는 방법
Editor : Vivado 2020.2
FPGA Board : Cmod A7-35t (xc7a35tcpg236-1)
IP : FND_Decoder ( 4자리 FND 출력을 위한 IP )
1. PROJECT MANAGER > Tools > Create and Package New IP...
2. Next
3. Package your current project > Next
4. 경로 설정 하기 > Next
5. Finish
6. identification -> IP name(Display name) check!
7. Ports and Interfaces -> In/Out Port check!
8. Re-Package IP
9. Create Block Design > Design name (setting) > OK
10. IP > Repository > ' + ' > IP가 저장된 경로 추가 > Ok
11. IP Diagram

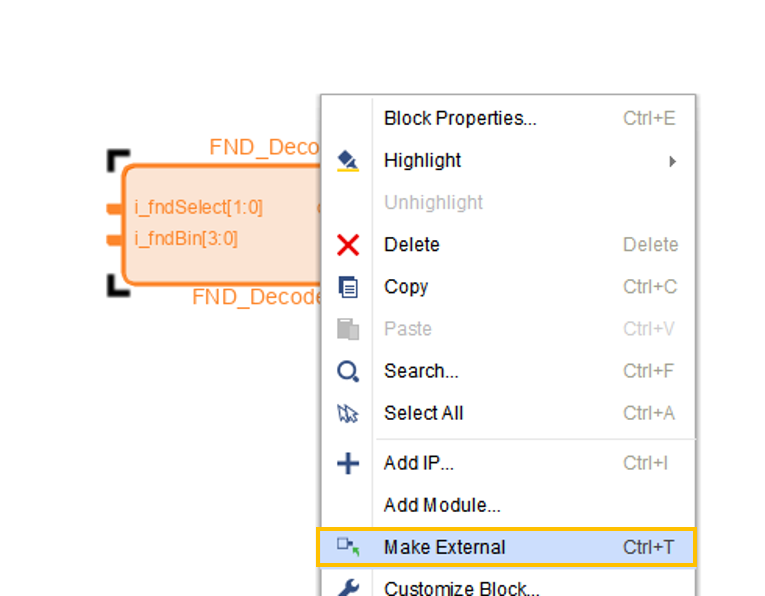

12. Make External
13. IP Diagram Complete
